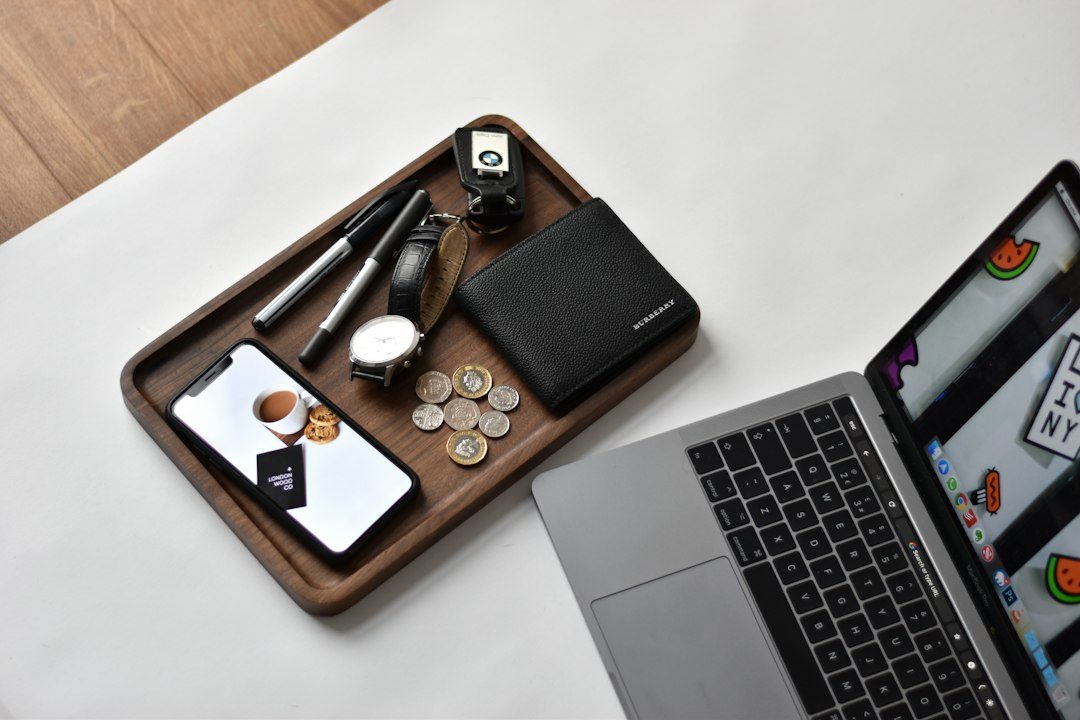

A Mitred Hardwood Valet Tray
- Hands on
- 85 min
- Start to finish
- 2.4 hours
- Level
- moderate
- Makes
- one tray, roughly 280 x 190 x 45mm
A valet tray is four short lengths of trim mitred into a frame around a thin plywood base — the same joinery as a picture frame, just deeper. Working from a single board keeps the grain matching around the corners, and taping the frame into a hinge before gluing means most of the squaring is done for you by the base itself.
What you need
Step by step
-
Cut the plywood base to 280 x 190mm, checking all four corners are square with a combination square.
10 min -
From the 1.8m length of hardwood, rough-cut two pieces a little over 280mm and two a little over 190mm — one for each side of the frame.
10 min -
Set the mitre saw to 45 degrees and cut one end of each piece. Then, using the base panel itself to mark the finished length at the long point of the mitre, cut the second end to match, so opposing sides come out identical.
20 min -
Dry-fit the four mitred pieces around the base with strips of masking tape across the outside of each joint, so the frame folds flat like a hinge and wraps around the base without gaps.
10 min -
Unfold the taped frame, run glue along each mitred face and along the base edges, then fold the frame back up around the base and pull the last joint closed with a further strip of tape.
10 min -
Check the assembly is square by comparing the two diagonals, nudge it true if needed, and leave it taped and flat until the glue has fully cured.
5 min -
Once cured, sand the whole tray, easing the top outer edge and all corners so nothing feels sharp.
15 min -
Wipe on the hardwax or Danish oil with the grain, then wipe off the excess after the time stated on the tin.
15 min
Afterwards
Vacuum sanding dust rather than blowing or brushing it off — hardwood dust is a known carcinogen and worth taking seriously even for a small job like this. Leave the oil to cure fully, per the time stated on the tin, before loading the tray with keys or coins that could mark a finish that hasn't hardened yet. Check the corners haven't opened up before the tray goes into daily use.
Questions
Can I use a softwood instead of a hardwood?
Yes. A tray handled daily shows dents sooner in pine than in oak or ash, but the construction is identical either way.
Do the mitres need anything besides glue?
A well-glued mitre this size comfortably carries a valet tray's loads. If you want insurance against a joint working loose, drive a fine pin through each corner before the glue fully cures.
The base sits slightly proud of the frame — is that a problem?
No. Plane or sand it flush once the glue has cured; it's easier to true up after assembly than to cut it exactly to size beforehand.
Why oil rather than a film finish like polyurethane?
Oil sinks into the wood rather than sitting on top, so it doesn't chip or cloud where keys and coins scuff it daily, and it's easy to refresh with another coat later.
